Light Duty Marine Winch Single Drum For Pulling Boats Ships

Brand Name : Deyuan

Model Number : DY005-030

Certification : CCS,ABS,BV,GL,LR,RINA,NK

Place of Origin : China

MOQ : 1

Price : USD 10000 to USD 30000 per unit

Payment Terms : T/T, Western Union, L/C

Supply Ability : 50 units per month

Delivery Time : 30 to 60 days

Packaging Details : export packing

Application : tugboat,fishing boat,cargo boat

Driven : Electric

Rope diameter : 8 to 20.5 mm

Rope capacity : 100 to 180 meters

Certificate : CCS,ABS,BV,GL,LR,RINA,NK

Frequency inverter : could supply

Contact Now

Light Duty Marine Winch Single Drum For Pulling Boats Ships

Brief description:

We consistently concentrates on marine fittings with good quality, best service and good price, we can supply series of electric marine mooring winches with Compact structure, easy to operate and Punctual delivery.

Main features:

Electric/Hydraulic Mooring Winch (Single and Multi-drum Type)

1, Rope diameter: 8-20.5 mm
2, Mooring Winches: up to 200 T Brake Holding

3, Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.

4, With drag brake system

5, Configuration: horizontal arrangement

6, Rope speed: complying with ISO requirements

Specification:

Name

Rated Pull

(kN)

Rated Speed

(m/min)

Drum Capacity

(m)

Ele-Motor Power
(kw)

Hydr-Motor Power

(kW)
5kN Electric
Mooring winch		 5 12 Ø8×100 3/1.2
10kN Electric(Hydraulic)
Mooring Winch		 10 12 Ø10×150 4.3/1.7 5.5
20kN Electric(Hydraulic)
Mooring Winch		 20 12 Ø15×150 8.5/3.5 11
30kN Electric(Hydraulic)
Mooring Winch		 30 15 Ø17×150 11/11/7.5 15
40kN Electric(Hydraulic)
Mooring Winch		 40 15 Ø18×150 16/16/11 22
50kN Electric(Hydraulic)
Mooring Winch		 50 15 Ø20.5×180 22/22/16 30

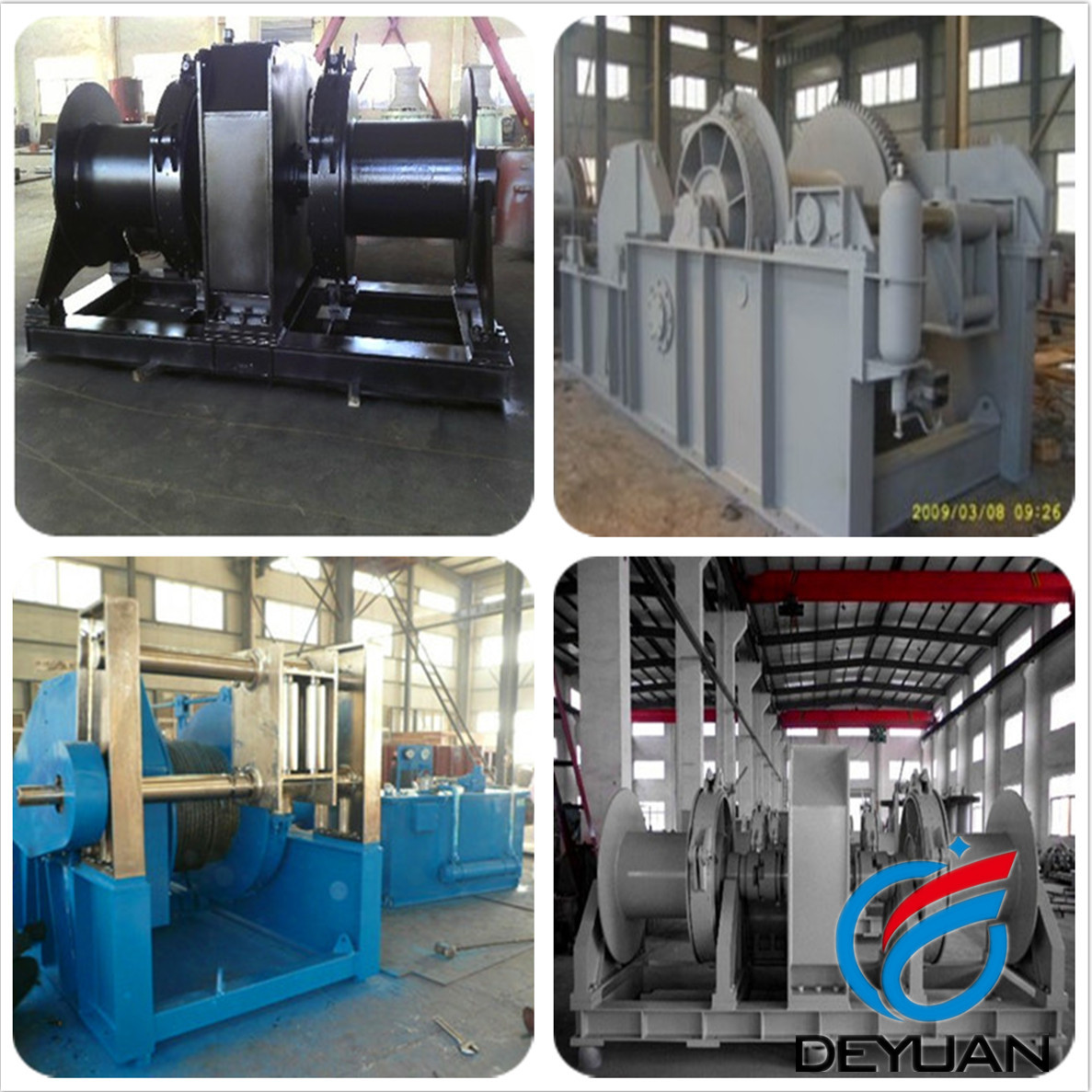

Product photo:

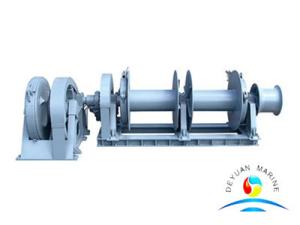

Light Duty Marine Winch Single Drum For Pulling Boats Ships
