Automatic Discharge Marine Fresh Water Pump Coalescing Oil Separator

Name: Automatic Discharge Marine Fresh Water Pump Coalescing Oil Separator
Brand: Deyuan Marine
Price: 1 USD

Brand Name : Deyuan Marine

Model Number : DY-OS

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : According to order volume

Payment Terms : T/T.L/C.D/A.D/P.Western Union ,Money Gram

Supply Ability : 1-5000

Packaging Details : Standard export package

Throughput capacity : 2-5T/H

Warranty : 1 Year

ery overseas Material : stainless steel

Application : Waste Oil Treatment

Type : Centrifuge

Delivery Time : 20days

Contact Now

High Performance Stainless Steel Automatic Discharge Marine Oil Separator

Overview:

DHZ series automatic discharging separator is special equipment for oil and fat refining. It has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily. this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating number at any time. We can make separating and discharging to the best affection from regulate separating parameter directly at the screen.

This machines are widely used in degum, de-soap and water washing technology in vegetable oil refinery. It can also be used for refinery of animal oil and mineral oil. and liquid-liquid, liquid-solid separation of light industry, chemical industry, pharmaceutical and food industry.

Parameters:

Description		DHY400	DHY530
Bowl	Speed (r/min)	6,525	5,900
	Separation Factor (ω2.r/g )	9,290	10,300
	Inner Diameter (mm)	400	530
Motor	Speed (r/min)	1,470	1,470
	Power (kW)	11.0	18.5
	Voltage (V AC)	380 (or defined by clients)	380 (or defined by clients)
	Frequency (Hz)	50 or 60 (to be defined)	50 or 60 (to be defined)
Maximum Capacity(L/h)		5,000	10,000
Dimensions(L×W×H) (mm)		1,500x1,200x1,500	1,600x1,900x1,800
Weight(kg):		1,000	1,800

Automatic Discharge Marine Fresh Water Pump Coalescing Oil Separator

Product Tags:

oil gas water separator

coalescing oil separator

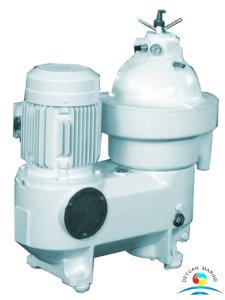

Automatic Discharge Marine Fresh Water Pump Coalescing Oil Separator Images
