Zinc Anode for port and offshore Engineering Facilities
Product Features
Zinc Anode for port and offshore Engineering Facilities were usually installed during platform's construction,they are big and heavy.To save cost and properly protect the CP system,our engineer can design and suggest the most suitable anodes for your offshore engeering facilities,pls donot hesitate to contact at any time if you plan to replace your anodes.
Product Specifications
Standard :GB-T4950-2002 ASTM B418-95 US MILL 18001K
Sacrificial anode of Zn-Al-Cd alloy
Zinc Anode for port and offshore Engineering Facilities
| Type | Specification(mm) | Thread Steel Foot Size(mm) | Flat Steel Foot Size(mm) | Net Weight
(kg) | Gross Weight
(kg) |
| A*(B1+B2)*C | D | F | G | | E | F | G |
| ZT-1 | 1000*(115+135)*130 | 1250 | 18 | 45 | 1250 | 40 | 8 | 45 | 111.6 | 115 |
| ZT-2 | 750*(115+135)*130 | 1000 | 16 | 45 | 1000 | 40 | 8 | 445 | 83 | 85 |
| ZT-3 | 500*(115+135)*130 | 750 | 16 | 45 | 750 | 40 | 6 | 45 | 55 | 56 |
| ZT-4 | 500*(105+135)*100 | 750 | 16 | 35 | 750 | 40 | 6 | | 38.6 | 40 |

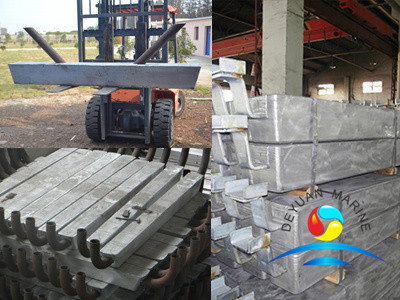

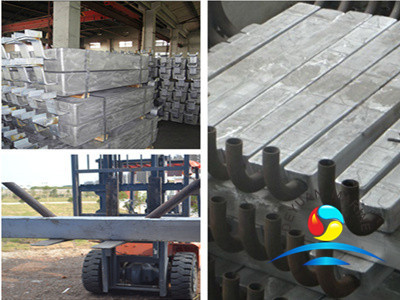

Product pictures
Company Introduction
China Deyuan Marine was established in year 2013. We devote ourselves to researching, developing, producing and selling of New Materials. The sales office is located in Zhuhai ,China. The manufacturing base is located in Henan and Shanxi province, which with over 5000mt annual capacity of Magnesium base master alloy, Magnesium anodes, Aluminum anodes, Zinc anodes, Aluminum base master alloy, Rare earth master alloy, Zinc base master alloy, magnesium alloy billet,advanced Industrial Ceramics, and other new materials, which are widely applied in high-tech field such as aerospace, machine manufacturing, electrommunication ,etc. Our products are accepted and recognized by clients worldwide including Europe, America, East Asia etc..
Our technical team have leading design and R&D ability, we can supply high quality & stable products, and also provide the technical solution during your producing and processing.
We took a part in many R&D projects in colleges and universities, and started strategic cooperation with many companies in China and overseas.
If you have any questions please let us know .
|
|
New!!! Marine Outfitting Equipment Zinc Anode For Port And Offshore Engineering Facilities Images
|
