Product Features

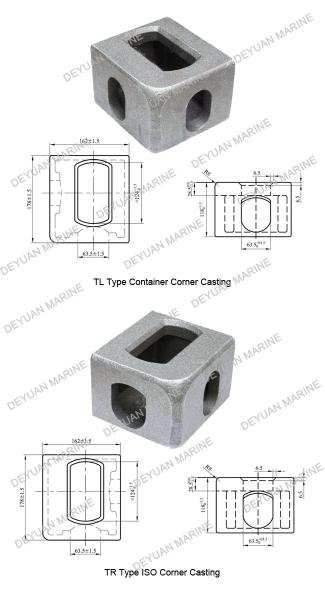

With Competitive Price Shipping Container Lead Fixed Parts/TL Type
Container Corner Casting & TR Type ISO Corner Casting
Our factory produces ISO standard container fittings including casting container corners,container
door lockset and hinges, container door seal gasket, container board, container twist lock and
container bottom side rail,ect.
Details for casting container corners:
1.Size:178mm*162mm*118mm
2.Weight:11kgs/pc,88kgs/set
3.Material: JIS SCW490
4.8 pcs in 1 set,including 2 bottom right corners, 2bottom left corners,2 top right corners and
2 top left corners.
5. Unit weight:11kgs/pc.88kgs/set
6.Packing:Usually 100 pcs on plywooden pallet with strench film arround.
Detail Specifications
With Competitive Price Shipping Container Lead Fixed Parts/TL Type
Container Corner Casting & TR Type ISO Corner Casting
| Name | ISO1161 approval Marine corner casting |
| Material: | SCW490MOD |
| certification | ABS,BV |
| Standard | ISO1161 |
| SPEC | 178*162*118 |
| Packing | 8pcs in one set ,including2TL,2TR,2BL,2BR |
| Unite weight | 10.5-10.7kg/piece |
1,the container corner casting is manufactured based on advanced precoated sand shell mould
Casting technology
2,Hinge quality low alloy steel materials are used and intermediate frequency furnace is utilized for smelting and casting
3,Automatic controlled heat treatment equipment and combination type milling machine with high milling capacity are utilized during container corner casting production process
The above are how we control the quality for our products
We have certified by BV(French),ABS(America),and ISO(China),and our container corner castings can be made in conformation with ISO1161,GB/T1835-1995,BV,ABS,ISO and HD standards
As a professional container corner casting manufacturer based in china,Huadian provides a vast range of product that includes an container door lock,container hinge,container fitting , and more
Product Picture
Product Tags:
|
|
ISO1161 Approval Marine Corner Casting Cargo Container Parts 178*162*118 Images
|
