Shipping container parts Loose fitting in hold bridge fittings
Description:
Container secuing systems are composed with various lashing devices through a certain way to secure a containers during transpotations,the systems surely insure the security of transpotation.
Our mainly products for container spare parts as following:
Fixed fittings on deck: Raised foundations, Dovetail foundations, Lashing plates, D-rings .
Fixed fittings in holds: Flush type twistlock pockets, Welding plates, Welding cones, Guide fittings
Loose fittings on deck: Semi-automatic twistlocks, Conventional twistlocks, Midlocks, Dovetail twistlock, Turnbuckles (Pluse spanner) , Lashing bars ( pluse extension rods) , Operating rods , Bin racks , Storage bins , Bridge fittings ( pluse spanner )
Loose fittings in holds : Twist/double stackers, Stacking cones, Bottom stacking cones, pressure tension elements, Bridge fittings, base stacking cone, safety stacking cone, hanging stacking cone
Tension Type container bridge fittings specification:
1. Connects two containers side by side
2. Hooks-drop forged steel
3. Finish hot dip galvanized
4. Breaking load: 100KN
5. Compatible with all ISO type containers
6. Dimensions: 260mm, 280mm, 330mm, 380mm
7. Certificate:GL,BV,CCS,ABS,RINA,LR,NK,DNV etc.
Tension and Pressure Type Container Bridge Fittings
1. Finish hot dip galvanized
2. Breaking load: 250KN
3. Compatible with all ISO type containers
4. Other Lengths Available

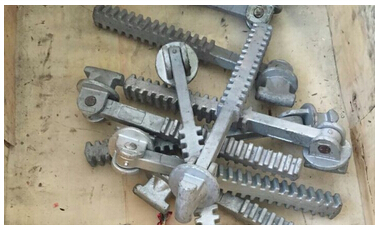

The pictures as follows :
Drawings:
We also supply other items below:
Factory workshop:
