Small Volume Marine Water Pump CWF Series Horizontal Water Sealing

Brief description:

The CWFseries marine horizontal water sealing pump is suitable to the protection pump on dredger where it

is used to seal the water.It is also suitable to the bilge pump , cooling pump and fire pump on boats . It may

be used to deliver the sea water , fresh water or other non-corrosive liquid medium lower than 80℃.

The pump rotates anticlockwise viewed from motor.

Main features:

1. Beautiful shape and fine structure,reliable performance.

2. Suitable for fluid drive system.
3. Competitive price.
4. Advanced techniques

5. With novel structure, small volume, convenient to install, use and maintenance, etc.

Specification:

Type	(50HZ,3phase,380v) main technical parameter					Motor power(kw)
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHR (m)	Shaft power(kw)	Motor power(kw)
50CWF-70-J	15	70	2900	3.2	6.4	7.5
65CWF-40-J	40	40	2950	3.5	6.9	11
65CWF-80-2D	25	80	2950	3.2	11.5	15
65CWF-100-2D	25	100	2950	3.2	15.8	18.5
65CWF-60-J	40	60	2950	3.5	11.73	15
65CWF-70-2D	40	70	2950	3.4	23.2	15
65CWF-105-2D	40	100	2950	3.5	23.2	30
65CWF-120-2D	40	120	2950	3.5	29.5	37
80CWF-50-J	50	50	2950	3.5	10.1	15
80CWF-65-J	50	65	2950	3.5	14.1	18.5
80CWF-70-2D	50	70	2950	3.5	15.9	18.5
80CWF-80-2D	50	80	2950	3.5	25.3	30
More types can be offered,pls contact us for more details.

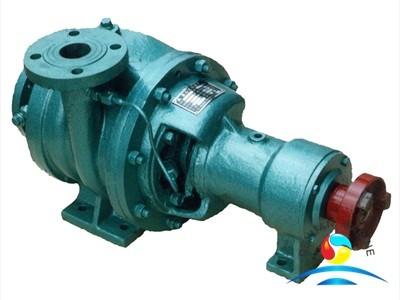

Product's photo:
