Double - Deck Marine Electric Equipment Stainless Steel Navigation Signal Light
Application scope:
Used in ships with length 50m or above 50m as lamp signal liaison when night navigation.
Product characteristics:
1. The shell adopts good quality stainless steel plate. The surface is painted with special nold-powder,
has the feature of corrosion resisting and shock resistance.
2. Whole seal structure, waterproof under severe environment.
3. It is more convenient to replace the bulb because of the integrated design for the up and down layer.
4. The lampshade adopts PC material, chroma stable and ultraviolet radiation resistance and down
lampholder.
Certificates:
Approved by CCS (China Classification Society), ZY of China Fishery Inspection.
Standard:
1. Conform to THE INTERNATIONAL REGULATION FOR PREVENTINGS COLLISION AT SEA, 1972 and
GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light's technical condition GB/T 3028-2012.
Specification:
| Name | Type | Visibility | Level arc | Lamp holder | Bulb | Protection class | Cable outside diameter | Color |
| Starboard light | CXH1-10S | 3n.m | 112.5° | P28S | 24V/60W60cd 110V/60W60cd 220v/65w60cd | IP56 | Φ11 | Green |

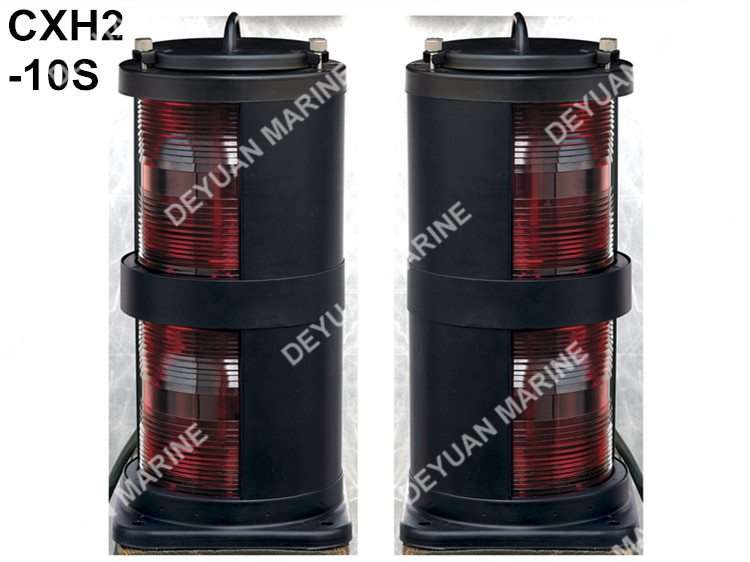

| Port light | CXH2-10S | 3n.m | 112.5° | Red |
| Masthead light | CXH3-10S | 6n.m | 225° | White |
| Stern light | CXH4-10S | 3n.m | 135° | White Yellow |

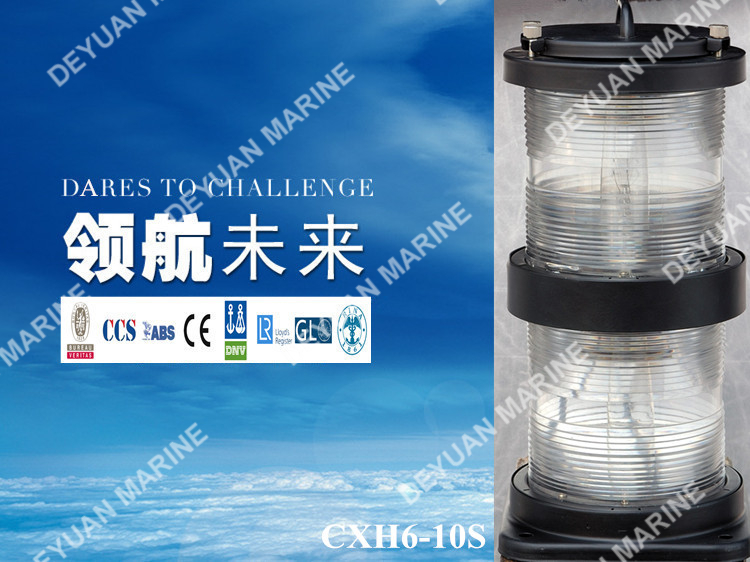

| All-round light | CXH6-10S | 3n.m | 360° | Red, Green White |
Quality Control:
Product Range: We specialized in majority of marine equipments& technique solution.
Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake
Product Inspection: We support factory inspection and inspection/certification.
Certificates:
- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment
Advantages of our factory:
1. Control the product quality from the source
2. The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements
