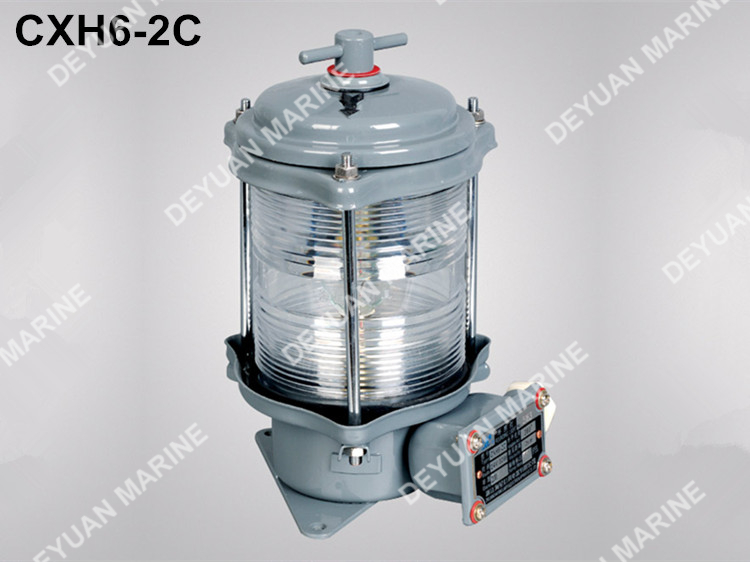

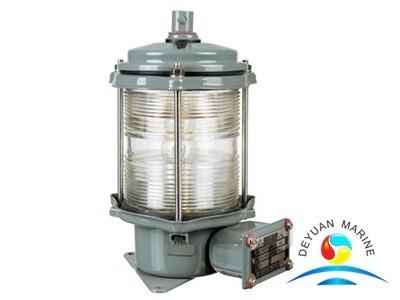

Corrosion - Resisting Marine Electric Equipment CXH - 2C Navigation Signal Light
The scope of application:
Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.
Products characteristic:
1. It is convenient to install and replace the bulb,and there are automatic Leakage holes in the bottom.
2. The shell adopts good quality metal material steel,the surface is painted the special mold-powder,has
the feature of corrosion-resisting and shock resistance.
3. The lampshade adopts PC material,it has the feature of ultraviolet radiation resistance and does not
discolor ect.
Adopt standard:
1. Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms
for steel ships
2. Confirm to GB/T3028-2015.
Specification:
| Name | Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Material | Color | Weight |
| Starboard light | CXH1- 2C | 2n.m | 112.5° | B15d | 24V/ 30W | Φ10-Φ12 | IP55 | steel | Green | 1.8kg |
| Port light | CXH2- 2C | 2n.m | 112.5° | steel | Red | 1.8kg |
| Masthead light | CXH3- 2C | 5n.m | 225° | steel | Transparent | 1.8kg |
| Stern light | CXH4- 2C | 2n.m | 135° | steel | Transparent yellow | 1.8kg |
| All-round light | CXH6- 2C | 2n.m | 360° | steel | Red green transparent | 1.8kg |
Quality Control:
Product Range: We specialized in majority of marine equipments& technique solution.
Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake
Product Inspection: We support factory inspection and inspection/certification.
Certificates:
- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment
Advantages of our factory:
1. Control the product quality from the source
2. The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements
