Shock Resistance Led Port Navigation Light High Brightness B15d
Application scope:
Used in ships with length 12m or above 12m (<50M) as lamp signal liaison when night navigation.
Products advantage:
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The shell is made of engineering plastic, corrosion resistance and impact resistance.
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Standard:
1. Conform to THE INTERNATIONAL REGULATION FOR PREVENTINGS COLLISION AT SEA, 1972 and
GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-2012.
Specification:
| Name | Model | Visible distance | Level arc | Lamp holder | Bulb | Protection class | Color | Weight |

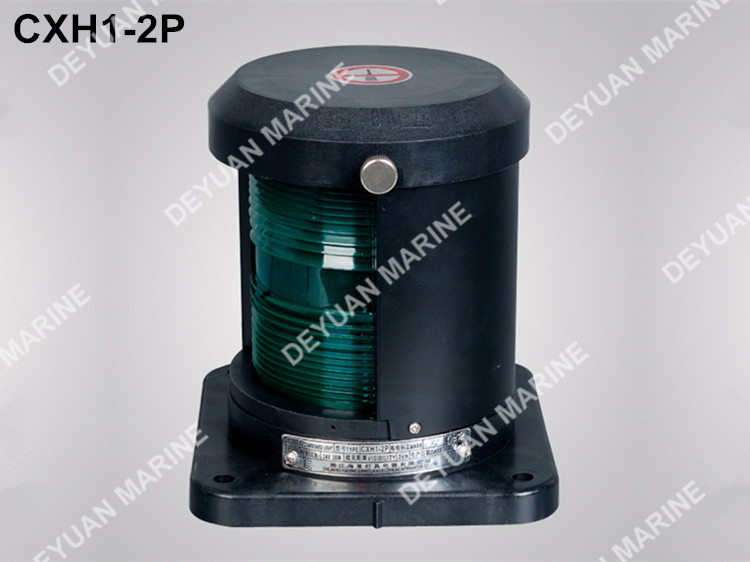

| Starboard light | CXH1- 2P | 2n.m | 112.5. | B15d | 24V 30W | IP56 | Green | 2.6kg |

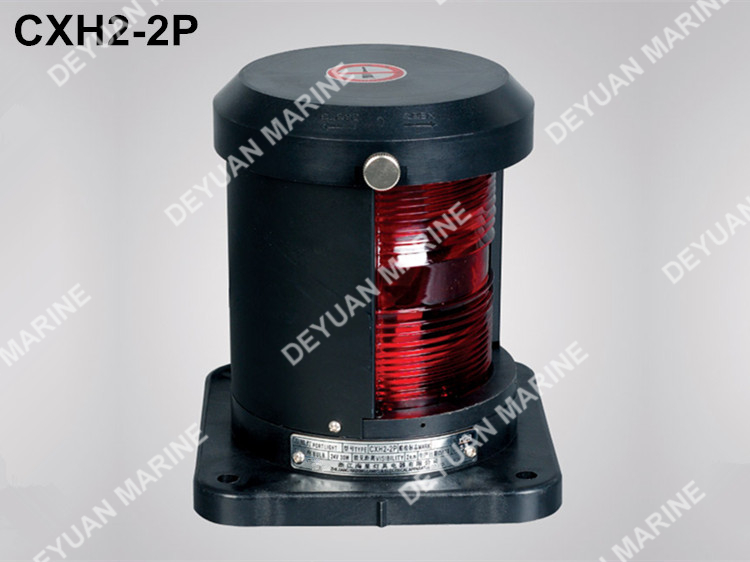

| Port light | CXH2- 2P | 2n.m | 112.5. | Red | 2.6kg |
| Masthead light | CXH3- 2P | 5n.m | 225. | Transparent | 2.5kg |
| Stern light | CXH4- 2P | 2n.m | 135. | Transparent Yellow | 2.7kg |
| All-round light | CXH6- 2P | 2n.m | 360. | Red Green Transparent | 2.2kg |
Quality Control:
Product Range: We specialized in majority of marine equipments& technique solution.
Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake
Product Inspection: We support factory inspection and inspection/certification.
Certificates:
- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment
Advantages of our factory:
1. Control the product quality from the source
2. The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements
